PLANR 16-15 TANG

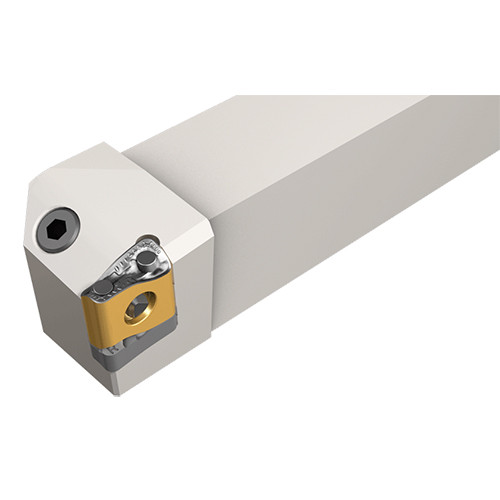

Lever lock tools carrying LNMX.. tangentially clamped inserts. Recommended for heavy longitudinal and face turning.

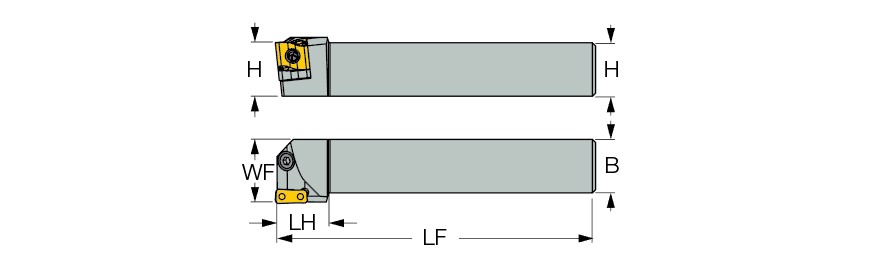

| Shank Height (H) | 1″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 1″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 1.18″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Unit | I |
| Application | | Ext. Tangential 93° Approach | |
Product Features
| Family Description | Lever lock tools carrying LNMX.. tangentially clamped inserts. Recommended for heavy longitudinal and face turning. | FamilyName | PLANR/L-TANG |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.7637
Name
General Indexable Turning Tools
FamilyName
PLANR/L-TANG
BrandName
Iscar
