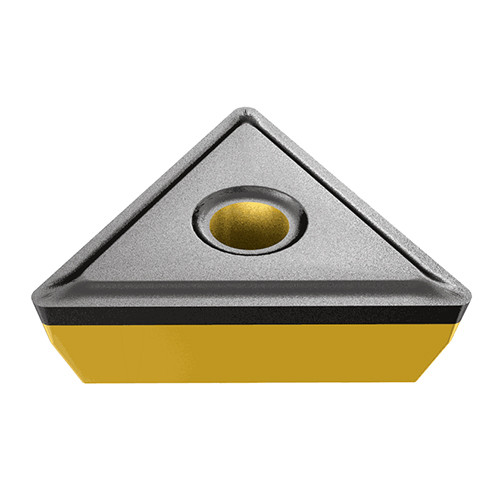

TPMR 160308 IC830
11° positive triangular inserts. Positive chipformer, low cutting forces. Used for internal turning and for finishing.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Tool Type | Turn Positive Inserts |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | | Min D.O.C. | 1 mm |
| Insert Style | TPMR | Depth of Cut Maximum (APMX) | 4 mm |

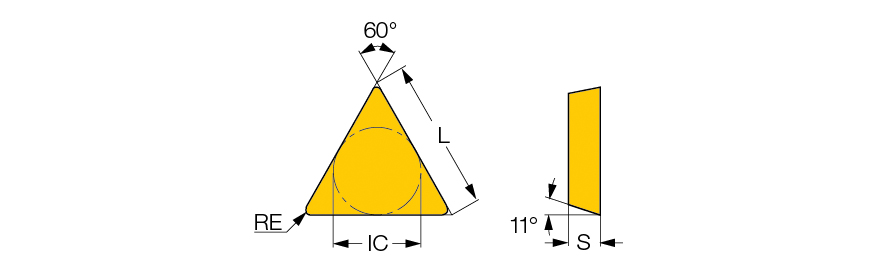

| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Insert Size | 322 | Max. Turning Feed (ft(max)) | 0.35 mm/rev |
| Cutting Edge Length (L) | 16.5 mm | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 3.18 mm | Chip Breaker Type | R |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN+TiN | Unit | M |
| Grade | IC830 |
Product Features
| Family Description | 11° positive triangular inserts. Positive chipformer, low cutting forces. Used for internal turning and for finishing. | FamilyName | TPMR |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0058
Name
Turning Indexable Inserts
FamilyName
TPMR
BrandName
Iscar
