| Applicable Material | | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle 93° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Min D.O.C. | 0.5 mm |

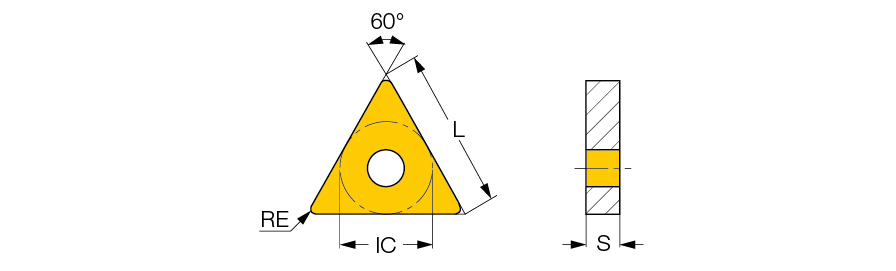

| Insert Style | TNMG | Depth of Cut Maximum (APMX) | 4 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Insert Size | 160408 | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Cutting Edge Length (L) | 16.5 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | M3M |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
| Grade | IC6025 |
Product Features

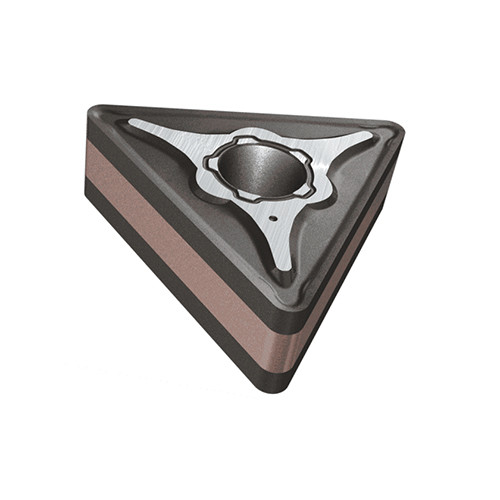

| Family Description | Double-sided triangular inserts, first choice for machining stainless and low carbon steel. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life. | FamilyName | TNMG-M3M |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0083
Name
Turning Indexable Inserts
FamilyName
TNMG-M3M
BrandName
Iscar
