| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 2.8 mm |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Tool Type | Turn Inserts AL, HTA Geometric |
| Insert Style | TCGT | Min D.O.C. | 0.2 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Insert Size | 110204 | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 11 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 2.38 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | AS |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC20 | Unit | M |
Product Features

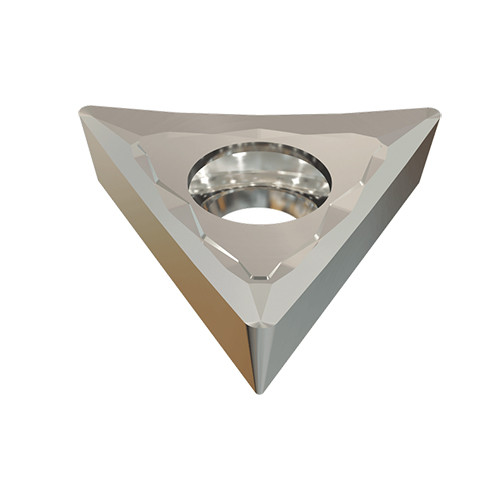

| Family Description | Triangular inserts with a 7° positive flank, very positive rake angle and sharp cutting edge for machining aluminum. | FamilyName | TCGT-AS |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
0.0024
Name
Turning Indexable Inserts
FamilyName
TCGT-AS
BrandName
Iscar
