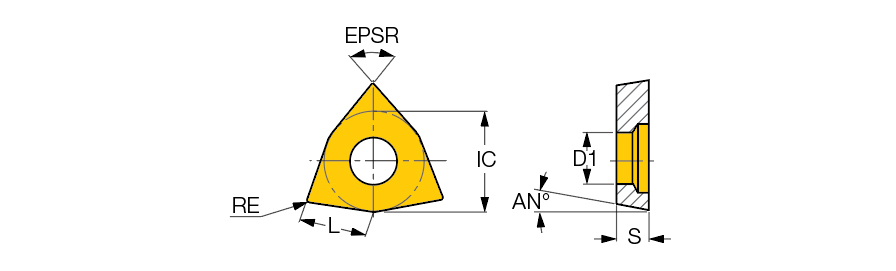

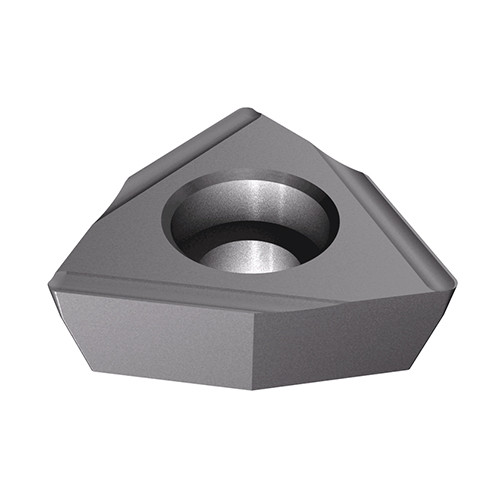

WPEX 040202R08 IC08
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Type | Turn Positive Inserts |
| Application | | Ext. Positive Trigon 45°Approa | Ext. Positive Trigon 60°Approa | Ext. Positive Trigon 90°Approa | | Min D.O.C. | 0.2 mm |
| Insert Style | WPEX | Depth of Cut Maximum (APMX) | 2 mm |
| Corner Radius (RE) | 0.2 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 040202 | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Cutting Edge Length (L) | 4 mm | Clearance Angle Major (AN) | 8 Degrees |
| Insert Thickness (S) | 2.5 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 6.6 mm | Chip Breaker Type | X |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC08 | Unit | M |
| Fixing Hole Diameter (D1) | 3.2 mm |
Product Features
| Family Description | Precision positive 8° and 12° clearance, 80° and 84° trigon inserts with a chipformer for finishing applications on Swiss automatics. | FamilyName | WPEX |
| Remarks | For tolerances, see more info. | BrandName | Iscar |
| COO | Switzerland |
Shipping Info
Weight per item
0.0022
Name
Turning Indexable Inserts
FamilyName
WPEX
BrandName
Iscar
Related Documentation
1.Single-sided, ground and polised for precision machining. 2.Specil chipformer for finishing excellent surface finish. 3.Eliminates built-up edge. 4.R-right-hand turning. 5.L-left-hand turning.
