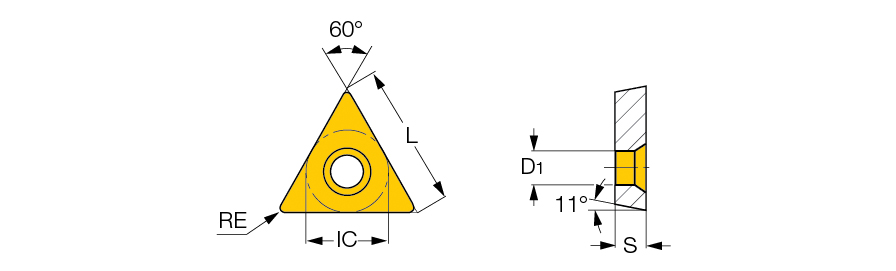

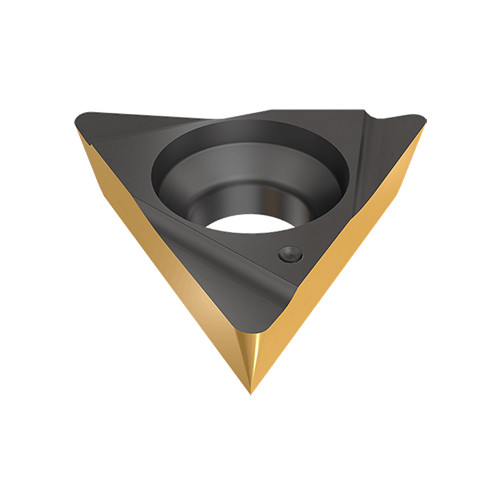

TPGX 110304-L IC20N
| Applicable Material | | Steel | Stainless Steel | | Fixing Hole Diameter (D1) | 3.5 mm |
| Application | | Int. 60° Triangle 90° Approach | Int. 60° Triangle 91° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | TPGX | Min D.O.C. | 1 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Insert Size | 110304 | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Cutting Edge Length (L) | 11 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 3.18 mm | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | X |
| Cutting Edge Material | Cermet | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC20N | Unit | M |
Product Features
| Family Description | Triangular 11° positive flank inserts with a ground chipformer. Used for finishing, provide excellent surface finish. Suitable for a wide range of materials. | FamilyName | TPGX |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
0.0018
Name
Turning Indexable Inserts
FamilyName
TPGX
BrandName
Iscar
