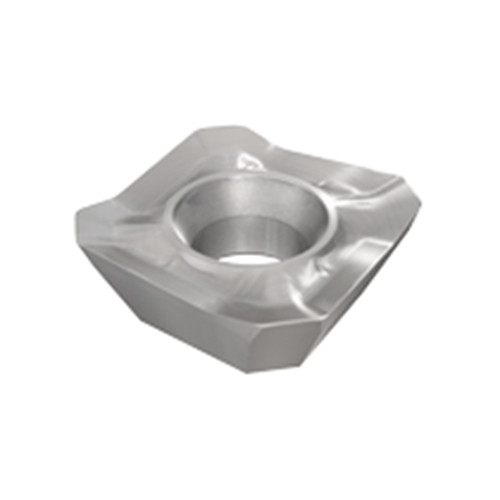

SEKT 1204AFR-HM IC928
Super positive square milling inserts for 45° finishing and medium machining soft materials.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Side Plunging | Slanted Shoulder & Chamfer | | Cutting Edge Material | Carbide |

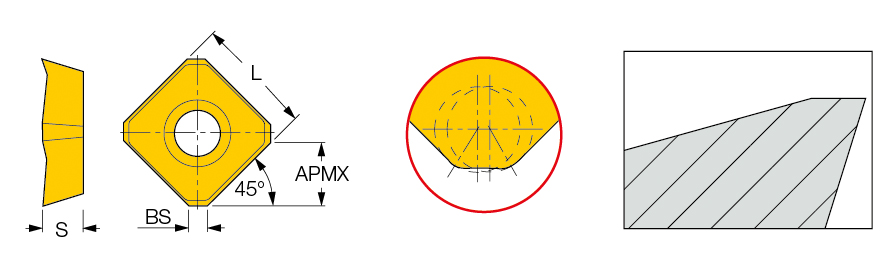

| Insert Length (INSL) | 12.9 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 6.4 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Thickness (S) | 5.16 mm | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC928 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
Product Features
| Family Description | Super positive square milling inserts for 45° finishing and medium machining soft materials. | FamilyName | SEKT-AF-R |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0073
Name
Milling Indexable Inserts
FamilyName
SEKT-AF-R
BrandName
Iscar
