| Applicable Material | | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Application | | Facing | Helical Interpolation | Rampdown | Slanted Shoulder & Chamfer | | Cutting Edge Material | Carbide |

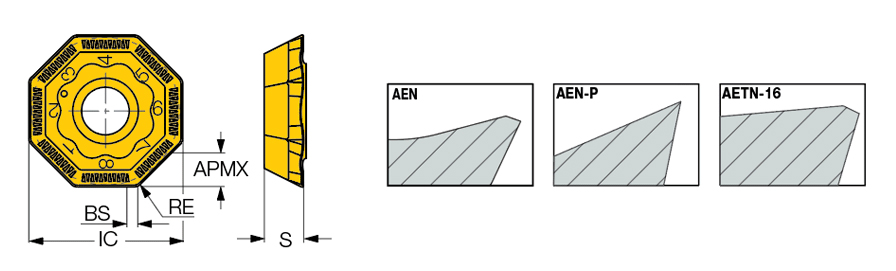

| Corner Radius (RE) | 0.6 mm | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 4.6 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Thickness (S) | 4.35 mm | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Metric |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC380 | Unit | M |
Product Features

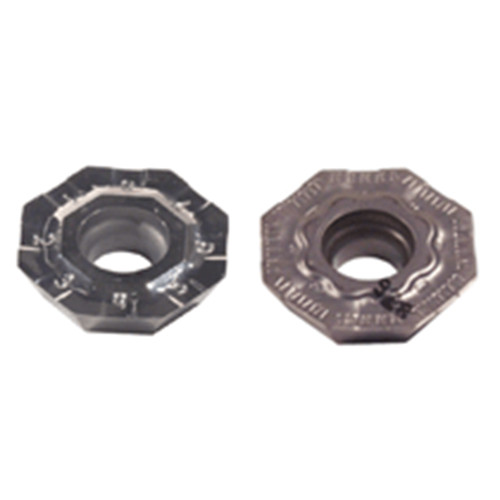

| Family Description | HELIOCTO octagonal milling inserts. The -16 type is used for hardened and mold steel and the -P type has a super positive shear angle for machining aluminum and titanium. | FamilyName | OFCR/OFCT-AEN/AETN |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0133
Name
Milling Indexable Inserts
FamilyName
OFCR/OFCT-AEN/AETN
BrandName
Iscar
