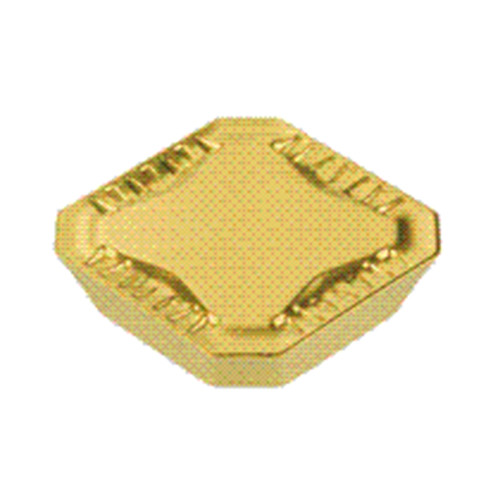

SEKR 1204AFN-76 IC328
Square milling inserts with ribs along edges - reducing heat transfer, used for 45° roughing applications.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Direction (HAND) | Right / Left |
| Application | | Facing | Plunging & Recessing | Slanted Shoulder & Chamfer | | Cutting Edge Material | Carbide |

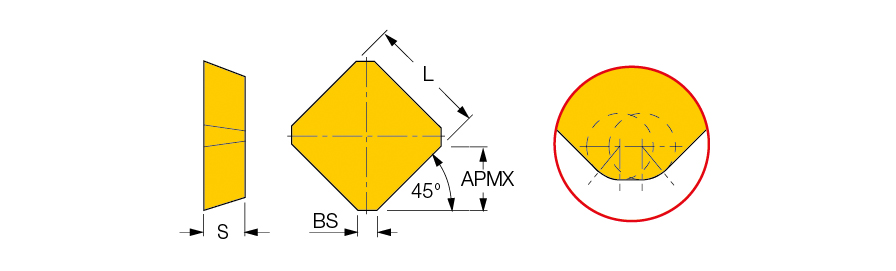

| Insert Length (INSL) | 12.7 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 6.22 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Thickness (S) | 4.76 mm | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC328 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
Product Features
| Family Description | Square milling inserts with ribs along edges - reducing heat transfer, used for 45° roughing applications. | FamilyName | SEKR-AF..-76 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0086
Name
Milling Indexable Inserts
FamilyName
SEKR-AF..-76
BrandName
Iscar
