ADKT 1505PDTR-RM IC950
HELIMILL inserts with reinforced helical cutting edge for interrupted cut and heavy machining.
| Applicable Material | | Steel | Cast Iron | | Cutting Direction (HAND) | Right Hand |
| Application | | Bottom Shouldering | Counter Boring | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | T Slotting | | Cutting Edge Material | Carbide |

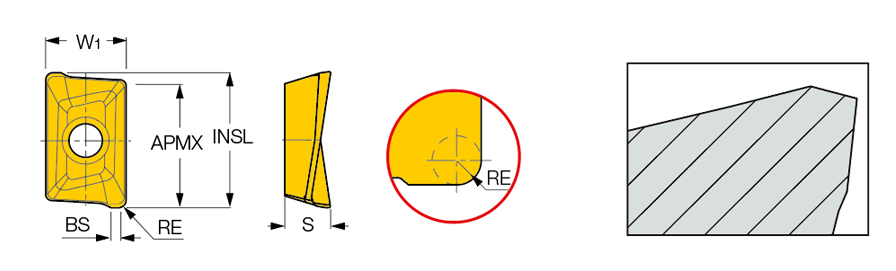

| Insert Length (INSL) | 15.75 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 1 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 12 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 9.54 mm | Cutting Edge Effective Length (LE) | 13.9 mm |
| Insert Thickness (S) | 5.63 mm | Measurement Type | Metric |
| Grade | IC950 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth | Unit | M |
Product Features
| Family Description | HELIMILL inserts with reinforced helical cutting edge for interrupted cut and heavy machining. | FamilyName | ADKT 1505PDTR/L-RM |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0073
Name
Milling Indexable Inserts
FamilyName
ADKT 1505PDTR/L-RM
BrandName
Iscar
