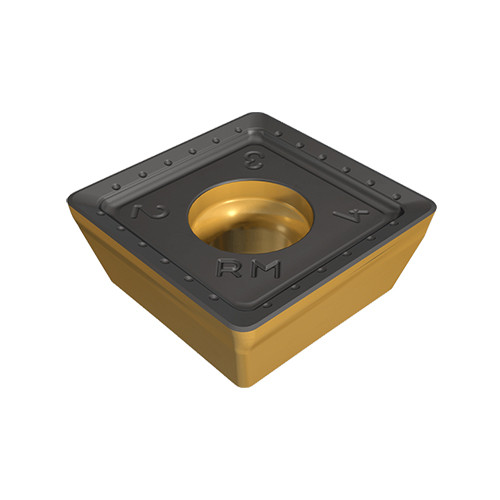

SDMT 1205PDR-RM-MM IC5400
Insert with helical cutting edges for 90° shoulder milling
| Applicable Material | | Steel | Stainless Steel | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Application | | Facing | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |

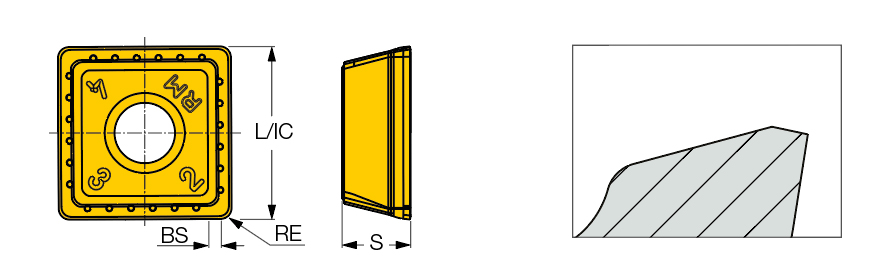

| Insert Length (INSL) | 12.7 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 10 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Insert Thickness (S) | 5 mm | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 1.6 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
| Grade | IC5400 |
Product Features
| Family Description | Insert with helical cutting edges for 90° shoulder milling | FamilyName | SDMT-PDR-RM |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0085
Name
Milling Indexable Inserts
FamilyName
SDMT-PDR-RM
BrandName
Iscar
