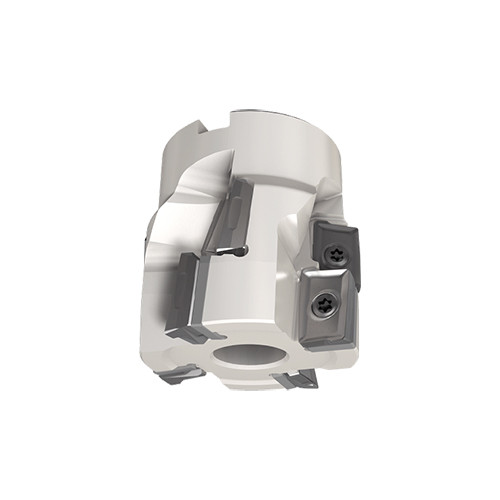

3M SM D063-40-4-27-20
MILL2000, Heavy duty extended flute shell mills carrying 3M AXKT 1304.../2006... inserts with dovetail section shape, helical cutting edges and positive rake angle. High durability in rough applications.
| Application | | Facing | Shouldering | Slotting | | Coolant Supply Property (CSP) | External |

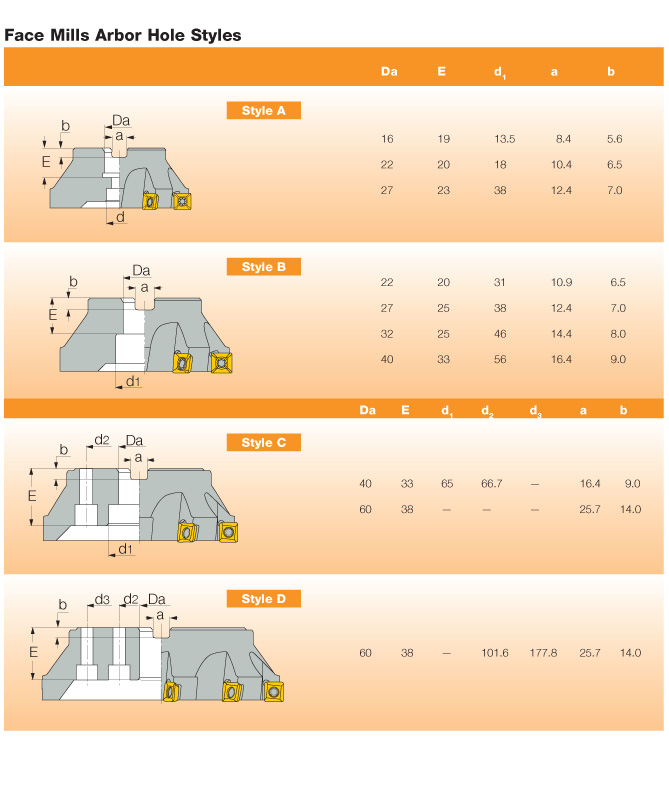

| Cutting Item Count (CICT) | 8 | Arbor Style | A |

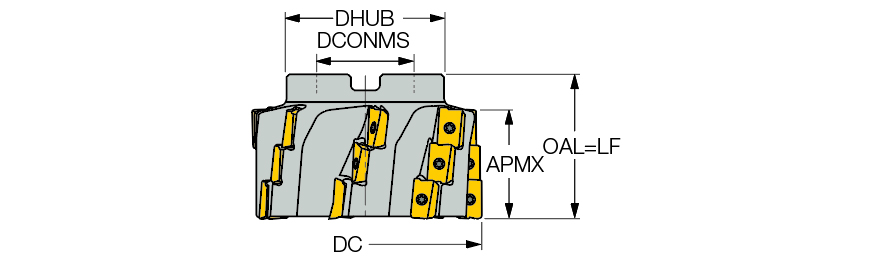

| Depth of Cut Maximum (APMX) | 39 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 63 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 58 mm | Body Material | Steel |
| Flute Count (NOF) | 4 | Tool Type | 90° Extended flute shell mill |
| Overall Length (OAL) | 65 mm | Unit | M |
| Master Insert Identification (MIID) | 3M AXKT 2006PDTR-RM |
Product Features
| Family Description | MILL2000, Heavy duty extended flute shell mills carrying 3M AXKT 1304.../2006... inserts with dovetail section shape, helical cutting edges and positive rake angle. High durability in rough applications. | FamilyName | 3M SM |
| Remarks | To substantially increase insert life, reduce feed by 50% during engagement and removal from the workpiece | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.0870
Name
Shell Mills
FamilyName
3M SM
BrandName
Iscar
