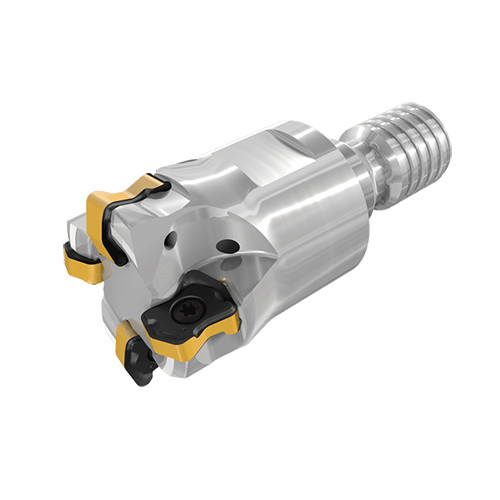

FFX4 ED42/1.65-6-M16-04
Endmills with FLEXFIT threaded adaptation carrying small double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets milling.

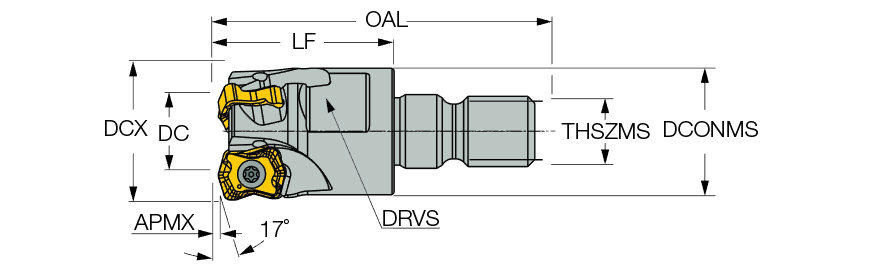

| Cutting Diameter (DC/DCX) | 42 mm | Drive Size (DRVS) | 25 mm |
| Cutting Diameter (DC) | 34.6 mm | Torque (TQ) | 0.9 Nxm |
| Cutting Item Count (CICT) | 6 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.8 mm | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Overall Length (OAL) | 65 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 0.8 Degrees | Measurement Type | Metric |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 29 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
| Master Insert Identification (MIID) | FFX4 XNMU 040310T | Cutting Diameter Maximum (DCX) | 42 mm |
| Functional Length (LF) | 40 mm | Unit | M |
| Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
Product Features
| Family Description | Endmills with FLEXFIT threaded adaptation carrying small double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets milling. | FamilyName | FFX4 ED-M |
| Remarks | For adaptation, click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Estimated torque values are specified in the TQ_3 parameter Radius for programming: for insert XNMU 1.8 mm, for insert XNMW 1.72 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.3270
Name
Indexable End Mills
FamilyName
FFX4 ED-M
BrandName
Iscar
