HM90 E90A D20-3-MMT12-JHP

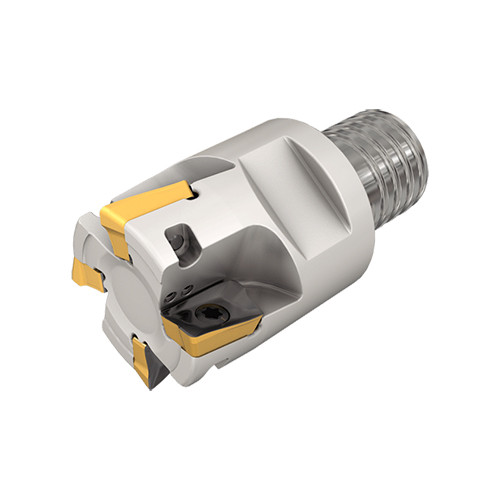

90° JHP endmills with a MULTI-MASTER threaded adaptation carrying HELI2000 and HELIMILL Inserts

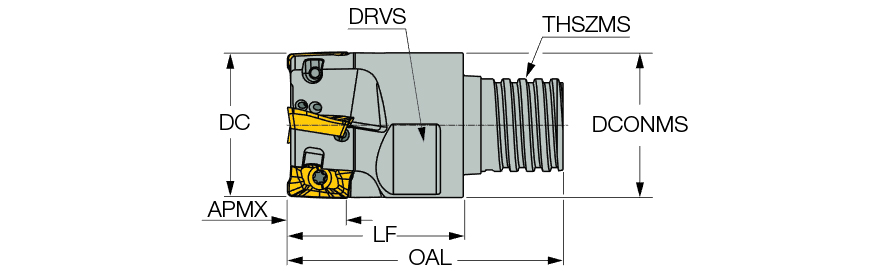

| Cutting Diameter (DC/DCX) | 20 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
| Cutting Diameter (DC) | 20 mm | Drive Size (DRVS) | 16 mm |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 9.8 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 38.5 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 7.5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 19.7 mm | Body Material | Steel |
| Master Insert Identification (MIID) | APKT 1003PDR-HM | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 25.5 mm | Unit | M |
| Tool Type | 90° indexable endmills |
Product Features
| Family Description | 90° JHP endmills with a MULTI-MASTER threaded adaptation carrying HELI2000 and HELIMILL Inserts | FamilyName | HM90 E90A-MM-10-JHP |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert Do not apply lubricant to the MULTI-MASTER threaded connection For tightening torque click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1320
Name
Indexable End Mills
FamilyName
HM90 E90A-MM-10-JHP
BrandName
Iscar
