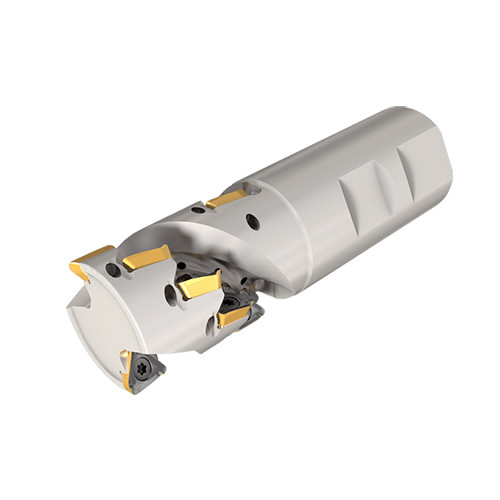

HM390 TPK D40-49-4-W32-10
Extended flute endmills carrying HM390 TPKT 1003 triangular inserts with 3 helical cutting edges

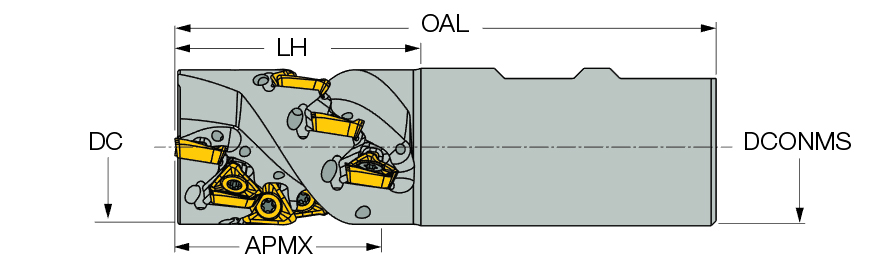

| Cutting Diameter (DC/DCX) | 40 mm | Functional Length (LF) | 89 mm |
| Cutting Diameter (DC) | 40 mm | Tool Type | 90° Extended flute shell mill |
| Cutting Item Count (CICT) | 28 | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 49 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 125 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 1.6 Degrees | Measurement Type | Metric |
| Application | | Shouldering | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | HM390 TPKT 1003 | Unit | M |
| Head Length (LH) | 59 mm |
Product Features
| Family Description | Extended flute endmills carrying HM390 TPKT 1003 triangular inserts with 3 helical cutting edges | FamilyName | HM390 TPK-10 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.8090
Name
Indexable End Mills
FamilyName
HM390 TPK-10
BrandName
Iscar
