T490 ELN D20-2-W20-08C
T490 Line, 90° endmills carrying T490 LNMT/LNHT 08...tangentially clamped inserts with 4 helical, 8 mm long cutting edges.

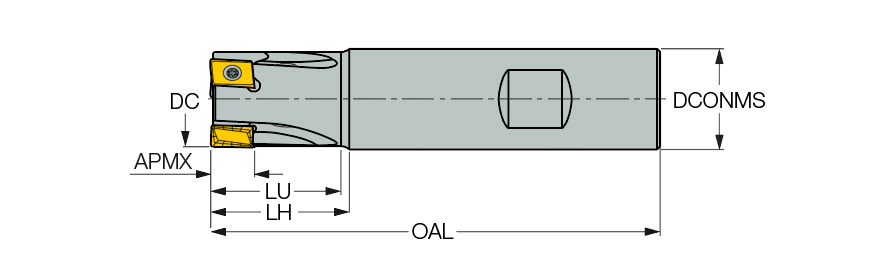

| Cutting Diameter (DC/DCX) | 20 mm | Functional Length (LF) | 65 mm |
| Cutting Diameter (DC) | 20 mm | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 26 mm |
| Depth of Cut Maximum (APMX) | 8 mm | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 90 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1.7 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Body Material | Steel |
| Master Insert Identification (MIID) | T490 LNMT 0804PNR | Connection Code Machine Side (CCMS) | Weldon |
| Head Length (LH) | 28 mm | Unit | M |
Product Features
| Family Description | T490 Line, 90° endmills carrying T490 LNMT/LNHT 08...tangentially clamped inserts with 4 helical, 8 mm long cutting edges. | FamilyName | T490 ELN-08 |
| Remarks | B suffix with long cylindrical shank which may be shortened. For adaptation, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2330
Name
Indexable End Mills
FamilyName
T490 ELN-08
BrandName
Iscar
