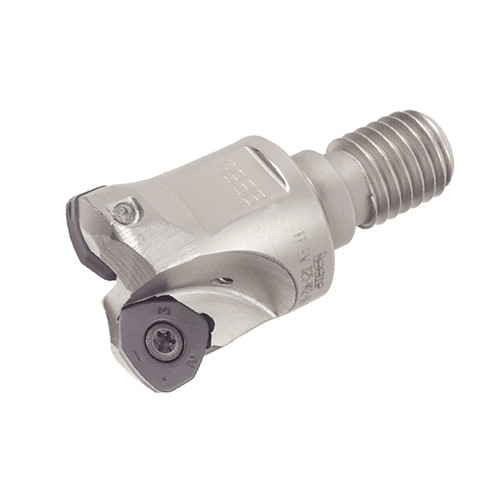

FF EW D40-M16-06-C
FEEDMILL, fast feed endmills with FLEXFIT threaded adaptation, using FF WOMT... inserts. Can run at very high feed rates of up to 1.5 mm/tooth at small DOC, resulting in very high metal removal rates.

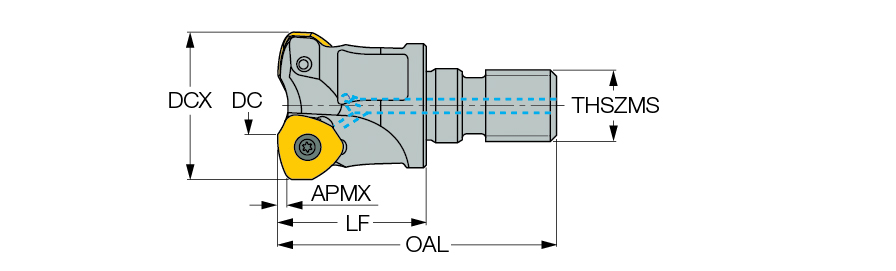

| Cutting Diameter (DC/DCX) | 26 mm | Flute Count (NOF) | 4 |
| Cutting Diameter (DC) | 26 mm | Torque (TQ) | 2 Nxm |
| Cutting Item Count (CICT) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 1.2 mm | Tool Cutting Edge Angle (KAPR) | 13 Degrees |
| Overall Length (OAL) | 65 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2.5 Degrees | Measurement Type | Metric |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Body Material | Steel |
| Master Insert Identification (MIID) | FF WOMT0602 | Connection Code Machine Side (CCMS) | FLEXFIT |
| Functional Length (LF) | 40 mm | Cutting Diameter Maximum (DCX) | 40 mm |
| Tool Type | Fast Feed Endmill | Unit | M |
| Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
Product Features
| Family Description | FEEDMILL, fast feed endmills with FLEXFIT threaded adaptation, using FF WOMT... inserts. Can run at very high feed rates of up to 1.5 mm/tooth at small DOC, resulting in very high metal removal rates. | FamilyName | FF EW-M |

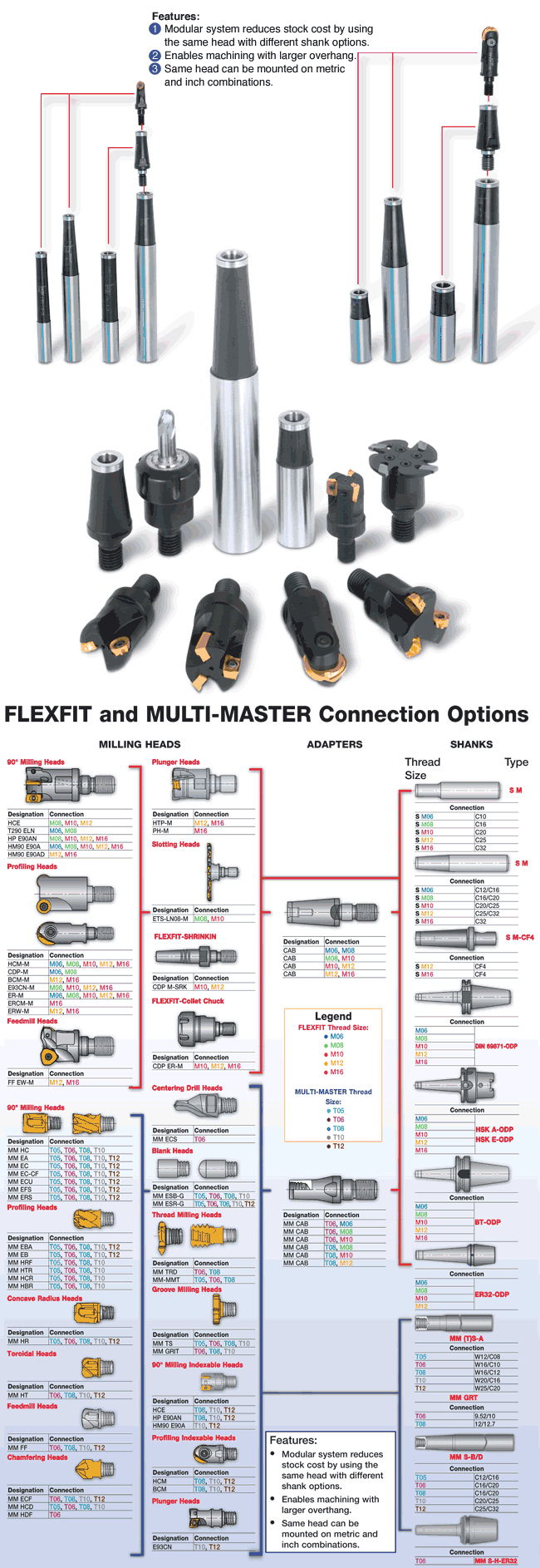

| Remarks | For adaptation, click on More Info When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.3070
Name
Indexable End Mills
FamilyName
FF EW-M
BrandName
Iscar
