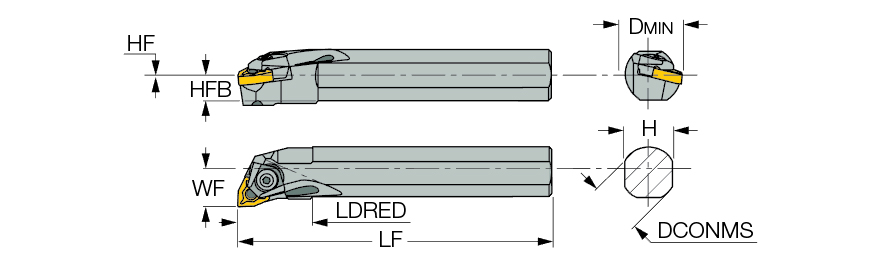

S25T MWLNR-06W
| Connection Diameter Machine Side (DCONMS) | 25 mm | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 300 mm | Application | | Int. 80° Trigon 95° Approach | |
| Overall Length (OAL) | 300 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 28 mm | Rake Angle Radial (GAMF) | -10 Degrees |
| Shank Height (H) | 23 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 17 mm | Body Material | Steel |
| Master Insert Identification (MIID) | WNMG 06T3 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 32 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Top-wedge-lock boring-bars carrying double-sided trigon inserts. S - Steel shank; A - Steel shank with coolant hole | FamilyName | A/S-MWLNR/L-W |
| COO | India | BrandName | Iscar |
Shipping Info
Weight per item
1.1220
Name
Indexable Internal Turning Tools
FamilyName
A/S-MWLNR/L-W
BrandName
Iscar
