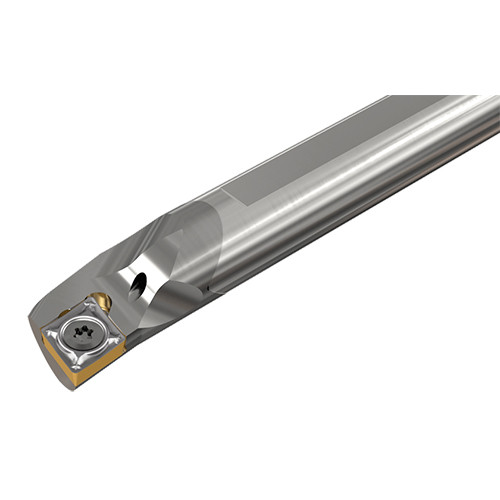

S12M SCLCR-06
Screw lock boring bars carrying 80° rhombic inserts with 7° clearance for 20 mm minimum bore diameter.

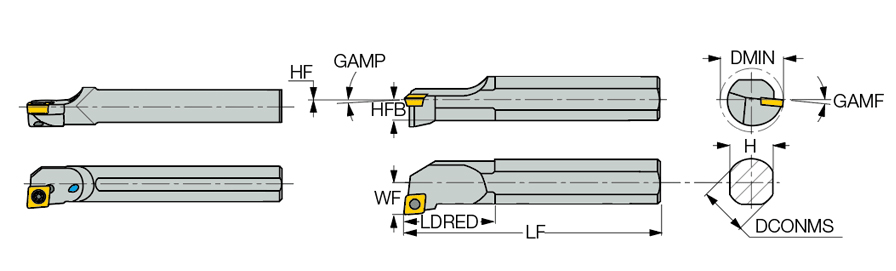

| Connection Diameter Machine Side (DCONMS) | 12 mm | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 150 mm | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 25 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 12 mm | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Width (WF) | 9 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CCMT 060204-14 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 16 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
Product Features
| Family Description | Screw lock boring bars carrying 80° rhombic inserts with 7° clearance for 20 mm minimum bore diameter. | FamilyName | A/E/S-SCLCR/L |
| Remarks | S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1500
Name
Indexable Internal Turning Tools
FamilyName
A/E/S-SCLCR/L
BrandName
Iscar
