S16Q CTFPR-11

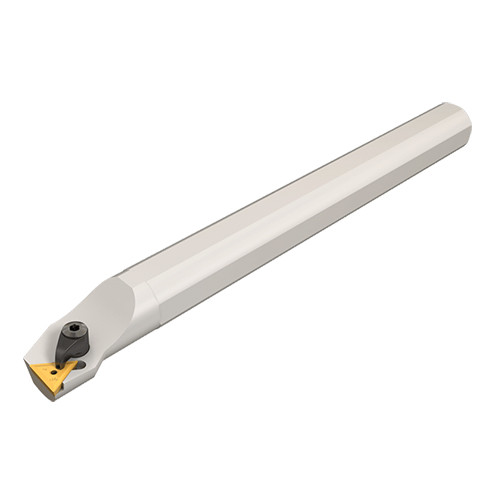

Clamp lock boring bars carrying 11° clearance triangular inserts.

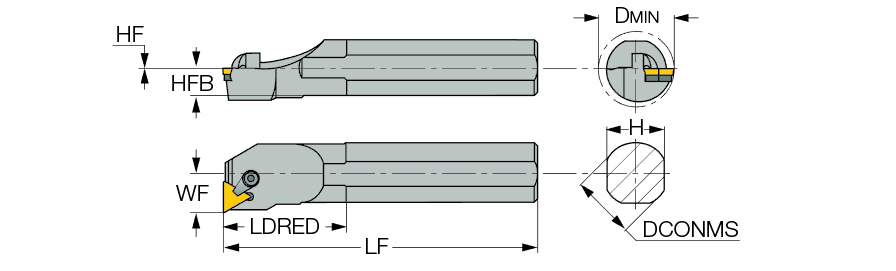

| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | Int. 60° Triangle 91° Approach | |
| Overall Length (OAL) | 180 mm | Rake Angle Axial (GAMP) | 4 Degrees |
| Reduced Body Diameter Length (LDRED) | 38 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Shank Height (H) | 15 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 11 mm | Body Material | Steel |
| Master Insert Identification (MIID) | TPMR 1103 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 20 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Clamp lock boring bars carrying 11° clearance triangular inserts. | FamilyName | S-CTFPR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.2870
Name
Indexable Internal Turning Tools
FamilyName
S-CTFPR/L
BrandName
Iscar
