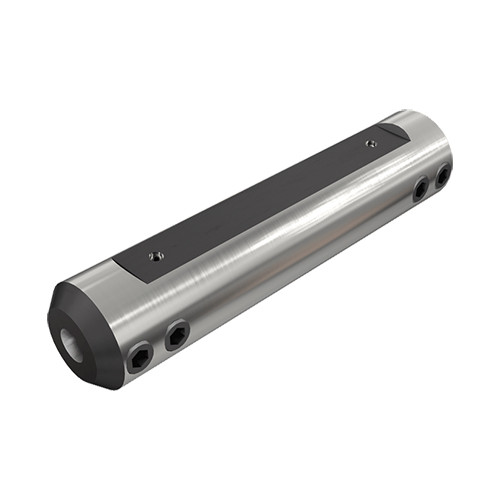

PICCO 22-4-5
Holders for PICCO-CUT inserts and small diameter boring bars.

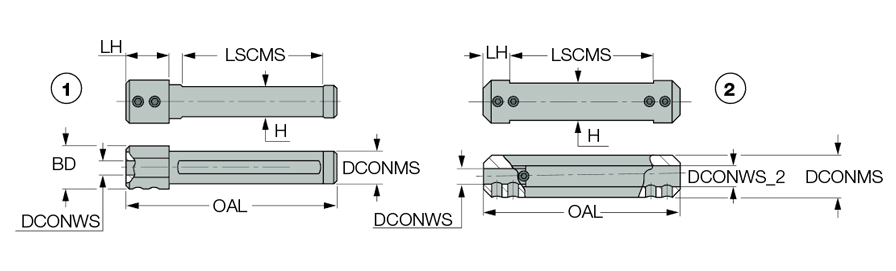

| Connection Diameter Machine Side (DCONMS) | 22 mm | Tool Type | Round Shanks |
| Overall Length (OAL) | 90 mm | Body Material | Steel |
| Head Length (LH) | 10 mm | Measurement Type | Metric |
| Shank Height (H) | 20 mm | Unit | M |
| Connection Diameter Workpiece Side (DCONWS) | 4 mm |
Product Features
| Family Description | Holders for PICCO-CUT inserts and small diameter boring bars. | FamilyName | PICCO/MG PCO (Holder) |
| Remarks | Holders are suitable for right- and left-hand inserts, and boring bars | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2620
Name
Indexable Internal Turning Tools
FamilyName
PICCO/MG PCO (Holder)
BrandName
Iscar
