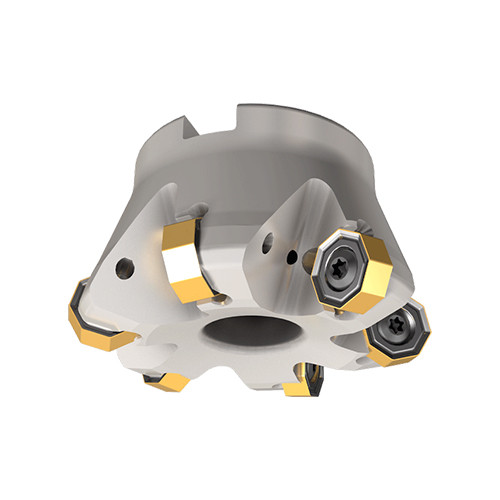

FF SOF 8/16 D100-08-32R
Fast feed milling cutter, carrying square or octagonal double-sided inserts with 8/16 cutting edges.
| Cutting Diameter (DC/DCX) | 105.4 mm | Master Insert Identification (MIID) | ONHU 050500-N-HP |
| Cutting Diameter (DC) | 100 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 105.4 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2.7 mm | Application | | Facing | Fast Feed Milling | Profiling | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50.4 mm | Tool Cutting Edge Angle (KAPR) | 15 Degrees |
| Hub Diameter (DHUB) | 102.6 mm | Tool Type | Fast Feed Face mill |

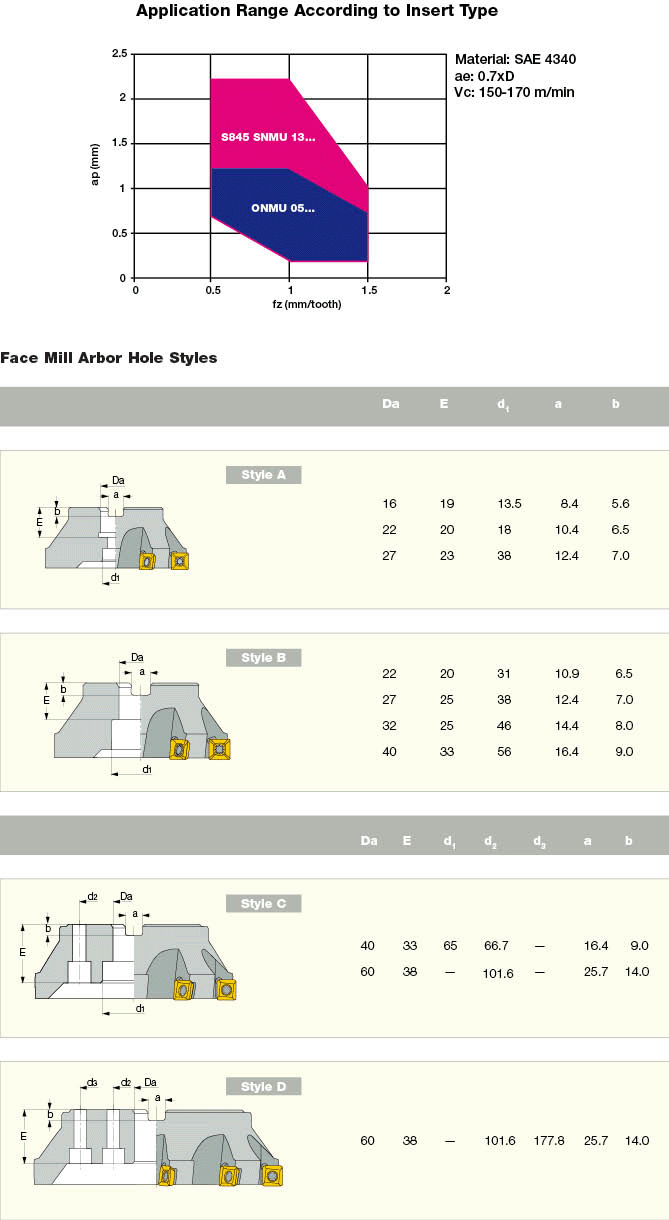

| Arbor Style | B | Unit | M |
Product Features
| Family Description | Fast feed milling cutter, carrying square or octagonal double-sided inserts with 8/16 cutting edges. | FamilyName | FF SOF |

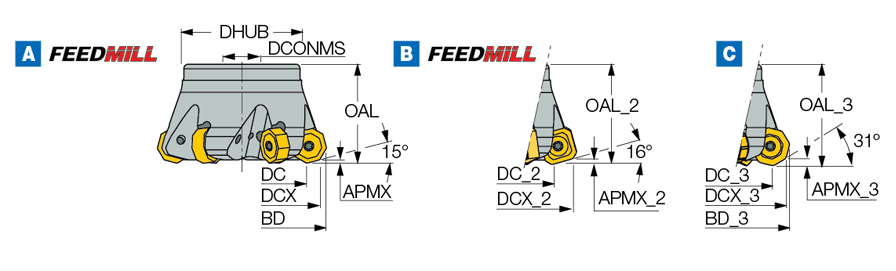

| Remarks | A- with ONMU 0505... insert B- with S845 SNMU 1305... insert C- with OXMT 0507R08-FF insert Use only Torx Plus keys For adaptation click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.7150
Name
Indexable Face Mills
FamilyName
FF SOF
BrandName
Iscar
