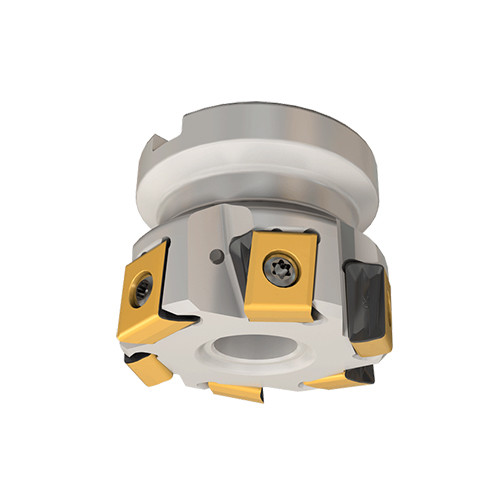

T490 FLN D4.00-13-1.5-R13
HELITANG T490 Line, 90° face mills using T490 LNMT/LNHT 13... tangentially clamped inserts with 4 long helical cutting edges.

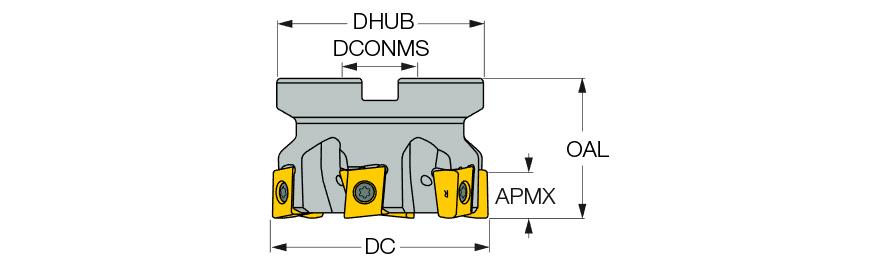

| Cutting Diameter (DC/DCX) | 4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 4″ | Body Material | Steel |
| Cutting Item Count (CICT) | 13 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.492″ | Application | | Facing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 3.19″ | Tool Type | 90° Facemills |
| Arbor Style | B | Unit | I |
| Master Insert Identification (MIID) | T490 LNHT 130612PNTR |
Product Features
| Family Description | HELITANG T490 Line, 90° face mills using T490 LNMT/LNHT 13... tangentially clamped inserts with 4 long helical cutting edges. | FamilyName | T490 FLN-13 |
| Remarks | When machining slots, coarse pitch cutters should be used | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
3.8603
Name
Indexable Face Mills
FamilyName
T490 FLN-13
BrandName
Iscar
