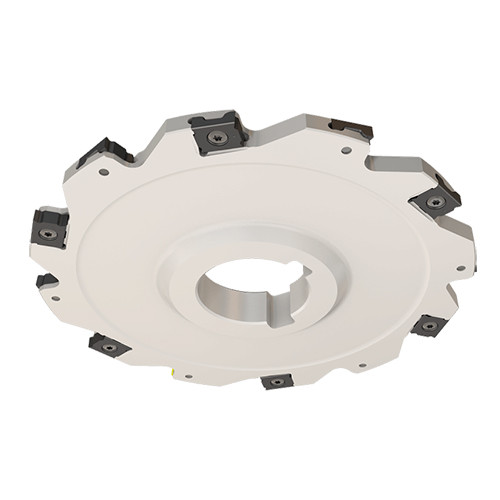

‎SDN D2.50-.156-07-LN08

Disk type grooving and slitting cutters carrying tangentially clamped inserts with 4 cutting edges.

Item # ISC3181149

Brand: Iscar

Mfr#: 3181149

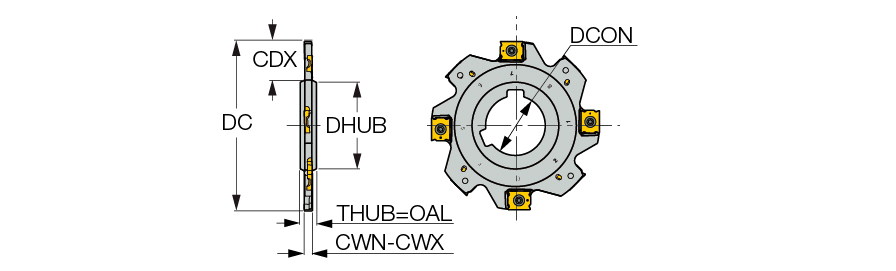

Cutting Diameter (DC)	‎2-1/2″	Overall Length (OAL)	1/4″
Cutting Item Count (CICT)	8	Master Insert Identification (MIID)	LNET 082604-TN-N
Peripheral Effective Cutting Edge Count (ZEFP)	4	Application	\| Side Slotting \| Slitting \| Slotting \|
Cutting Depth Maximum (CDX)	0.55″	Tool Type	Double-sided slotting cutters
Hub Diameter (DHUB)	‎1-1/4″	Measurement Type	Inch
Hub Thickness (THUB)	1/4″	Body Material	Steel
Cutting Width Maximum (CWX)	0.175″	Connection Code Machine Side (CCMS)	Disk type
Cutting Width Minimum (CWN)	0.156″	Unit	I
Flute Count (NOF)	8

Product Features

Family Description	Disk type grooving and slitting cutters carrying tangentially clamped inserts with 4 cutting edges.	FamilyName	SDN-LN08
COO	Israel	BrandName	Iscar

Weight per item

0.9921

Name

Disc w/Hole Indexable Slotting Cutters

FamilyName

SDN-LN08

BrandName

Iscar
